Residential Heating & Cooling Heat Pump

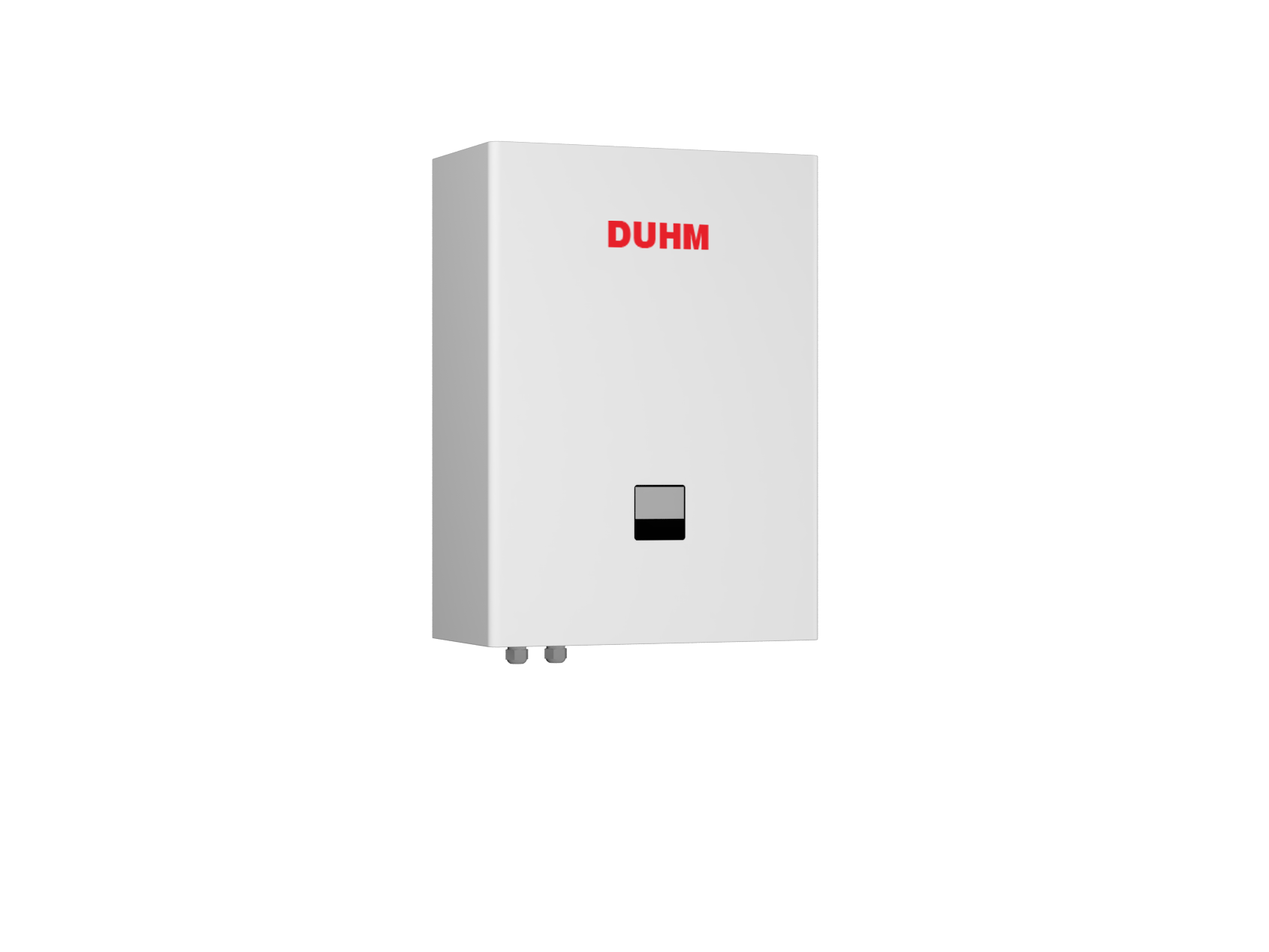

Hydronic Module

The Hydronic Module for easy and cost-effective lnstallation. Including Water pump, 3-way valve, filters, electric box, expansion tank, switch, etc.

● Cost-effective & Time-saving Installation

● Compact Inner Structure Design

● Improved Heat Pump Functionality

● Multi-function with 3-Way Valve

● Enhanced Safety with Expansion Tank

Capacity:

Download to see more details info@hmheatpump.com

Inquiry

Energy Efficiency A+++/A++(35°C/55°C)

Water supply temperature up to 60℃

Reliable Performancein -25℃ outdoor temperatures

Easy installation and maintenance

Heat Pump Keymark Certificate

Low noise

WIFI Smart Control

Aesthetic Design

Product Details
右侧
图标数据

Commodity name: Hydronic Module

Model	HM-18SA
Power Supply	220-240V/1/50Hz
Heating Capacity (kW)	6~18
Cooling Capacity (kW)	5~15
Water Flow (m³/h)	1.05~3.10
Operating Ambient Temperature (℃)	-25~43
Water Connection (inch)	G1''
Heating Side Water Connection (inch)	G1''
Hot Water Side Water Connection (inch)	G1''
Heating Side Pressure (Max) (bar)	1.0Mpa
Hot Water Side Pressure (Max) (bar)	1.0Mpa
Main Circulation Water Pump
Water Head (m)	7.5
Heating Water Pump
Water Head (m)	9
Hot Water Water Pump
Water Head (m)	7.5
Expansion Tank (L)	5L
Auxiliary Heater (kW)	3kw
Sound Pressure (1m) (dB(A))	24
Net Weight (kg)	42
Unit Dimension(LWH) (mm)

The Hydronic Module for easy and cost-effective lnstallation. Including Water pump, 3-way valve, filters, electric box, expansion tank, switch, etc.

● Cost-effective & Time-saving Installation

● Compact Inner Structure Design

● Improved Heat Pump Functionality

● Multi-function with 3-Way Valve

● Enhanced Safety with Expansion Tank
Energy Efficiency A+++/A++(35°C/55°C)

Water supply temperature up to 60℃

Reliable Performancein -25℃ outdoor temperatures

Easy installation and maintenance

Heat Pump Keymark Certificate

Low noise

WIFI Smart Control

Aesthetic Design

无

Keywords:

Hydronic Module

Questions?
HMHP technical consultants are at your service!

Contact: Kevin Liu. Director

Tel: +86-17665076505

Email: kevin@hmheatpump.com

Product Support

Controller | IOT | APP

Controller

4-inch color colorful touch screen
8 different languages available
MODBUS protocol
Built-in Wifi modul

Web Platform

Website design
Professional selection version for distributor
Easy selection version for end-user
Quick selection
System configuration
Energy consumption comparison

Smart App

Designed for end-user
Easy setting
Monitor unit status and energy consumption
Convenient remote control
