Residential Heating & Cooling Heat Pump

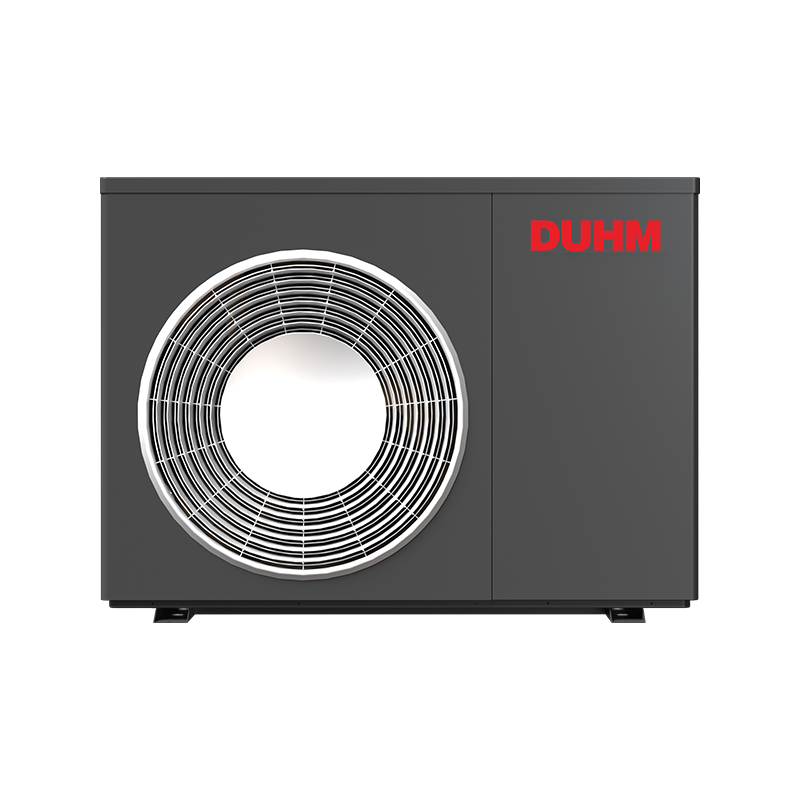

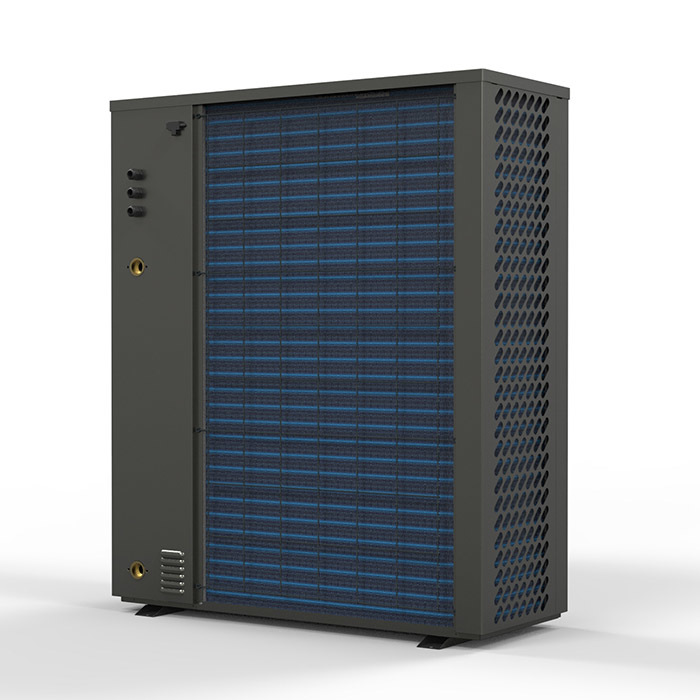

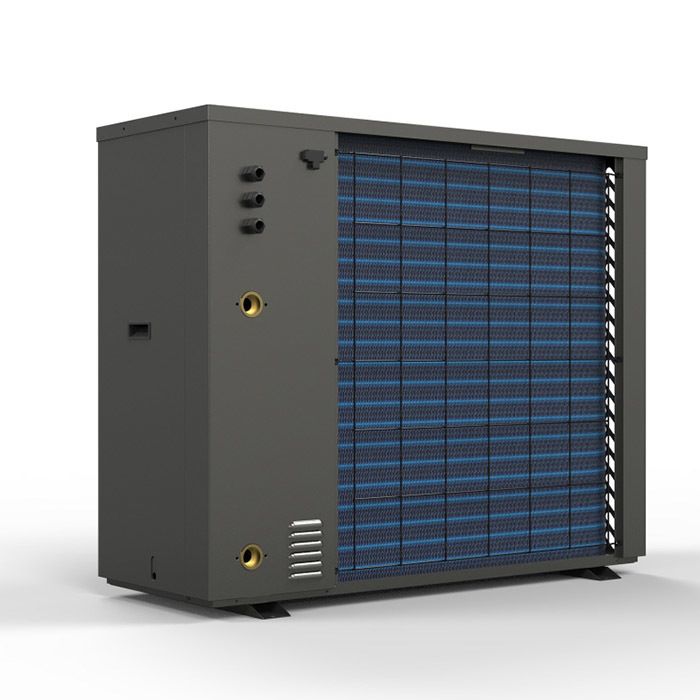

R290 AIR TO WATER HEAT PUMP

As R290 has been recognized by the industry as the most potential and eco-friendly refrigerant now, our R290 DC Inverter Heat Pump is worthwhile for you & your environment. You get a futureproof heating system and reduce CO2 emissions. As a heat pump manufacturer, we have been providing you with highly efficient appliances for heating, hot water and cooling. It can be used in extremely cold area with climate temperature as low as -25℃. And it’s max. flow temp. can reach 75℃.

● Energy Efficiency are A+++/A++ (35℃/55℃)

● Water supply temperature up to 75℃

● Reliable Performance in -25℃ outdoor temperatures

● EVI Technology

● Low noise

● Easy installation and maintenance

● Heat Pump Keymark Certificate

● WIFI Smart Control

● Aesthetic Design

● Famous-brand Compressor

● SG-Ready

Capacity:

Download to see more details info@hmheatpump.com

Inquiry

Energy Efficiency A+++/A++(35°C/55°C)

Water supply temperature up to 75℃

Reliable Performancein -25℃ outdoor temperatures

Easy installation and maintenance

Heat Pump Keymark Certificate

Low noise

WIFI Smart Control

Aesthetic Design

Product Details
右侧
图标数据

Commodity name: R290 AIR TO WATER HEAT PUMP

Energy Efficiency are A+++/A++ (35℃/55℃) Water supply temperature up to 75 ℃ Reliable Performance in -25℃ outdoor temperatures EVI Technology Low noise Easy installation and maintenance Heat Pump Keymark Certificate WIFI Smart Control Aesthetic Design Famous-brand Compressor SG-Ready

Model	DHAM-06SIA	DHAM-12SIA	DHAM-12TIA	DHAM-18SIA	DHAM-18TIA
Heating Condition-Ambient Temp.(DB/WB):7/6℃,Water Temp.(In/Out):30/35℃
Heating Capacity Range (kW))	2.38~6.12	4.65~11.80	4.65~11.80	4.97~17.54	4.97~17.54
Heating Power Input Range (kW)	0.45~1.37	0.87~2.62	0.86~2.56	0.95~3.96	0.94~3.92
COP (W/W)	4.44~5.25	4.51~5.32	4.60~5.40	4.42~5.20	4.47~5.25
Cooling Condition-Ambient Temp.(DB/WB):35/24℃,Water Temp.(In/Out):12/7℃
Cocling Capacity Range (kW)	1.68~4.95	4.08~10.99	4.08~10.99	5.62~15.20	5.62~15.20
Codling Power Input Range(kW)	0.57~2.03	1,43~4.58	1,40~4,48	1.97~6.46	1.95~6.38
EER (W/W)	2.43~2.96	2.40~2.85	2.45~29	2.35~2.85	2.38~287
Hot Water Condition -Ambient Temp.(DB/WB):20/15℃,Water Temp.(In/Out):15/55℃
Heating Capacity Range (kW)	2.54~7.26	5.71~14.28	5.71~14.28	8.80~22.01	8.80~22.01
Heating Power Input Range (kW)	0.50~1.67	1.11~3.26	1.09~3.22	1.73~5.14	1.72~511
COP (W/W)	4.33~5.06	4.38~5.12	4.43~5.20	4.28~5.08	4.30~5.11
ErP Rating(35℃/55℃)	A+++/A++
Operating Ambient Temperature (℃)	-25~43
Max Outet Water Temperature (℃)	75
Sound Pressure (1m)(dB(A))	50	52	52	54	54
Water System Data
Pipework Size (inch)	G1"
Water Flow (m³/h)	1.03	2.06	2.06	3.09	3.09
Water Pressure Drop (max)(kPa)	15	20	20	40	40
Circulation Pump Water Head (m)	7.5	9	9	9	9
Electrical System Data
Power Supply	220-240V/1/50Hz	220-240V/1/50Hz	380-415V/3/50Hz	220-240V/1/50Hz	380-415V/3/50Hz
Max.Power Input (kW)	2.10	3.93	3.84	5.94	5.88
Max.Current Input (A)	9.61	17.98	6.52	27.18	9.88
Fuse Rating (A)	10	20	8	32	10
Key Components
Refrigerant R290(kg)/CO2 Equivalent (Ton)	1.0/0.003	1.4/0.0042	1.4/0.0042	1.8/0.0054	1.8/0.0054
Compressor	DC Rotary Compressor
Fan Motor	DC Motor
Circulation Pump	1
Unit Dimension(LWH)(mm)	1155505855	11704751050	11704751050	11755051400	11755051400
Shipping Dimension(LWH)(mm)	1190510980	12055101185	12055101185	12105401535	12105401535
Net Weight /Gross Weight (kg)	100/110	125/135	125/135	165/180	165/180

The above data is for reference only;specific data is subject to the product nameplate.

As R290 has been recognized by the industry as the most potential and eco-friendly refrigerant now, our R290 DC Inverter Heat Pump is worthwhile for you & your environment. You get a futureproof heating system and reduce CO2 emissions. As a heat pump manufacturer, we have been providing you with highly efficient appliances for heating, hot water and cooling. It can be used in extremely cold area with climate temperature as low as -25℃. And it’s max. flow temp. can reach 75℃.

● Energy Efficiency are A+++/A++ (35℃/55℃)

● Water supply temperature up to 75℃

● Reliable Performance in -25℃ outdoor temperatures

● EVI Technology

● Low noise

● Easy installation and maintenance

● Heat Pump Keymark Certificate

● WIFI Smart Control

● Aesthetic Design

● Famous-brand Compressor

● SG-Ready
Energy Efficiency A+++/A++(35°C/55°C)

Water supply temperature up to 75℃

Reliable Performancein -25℃ outdoor temperatures

Easy installation and maintenance

Heat Pump Keymark Certificate

Low noise

WIFI Smart Control

Aesthetic Design
