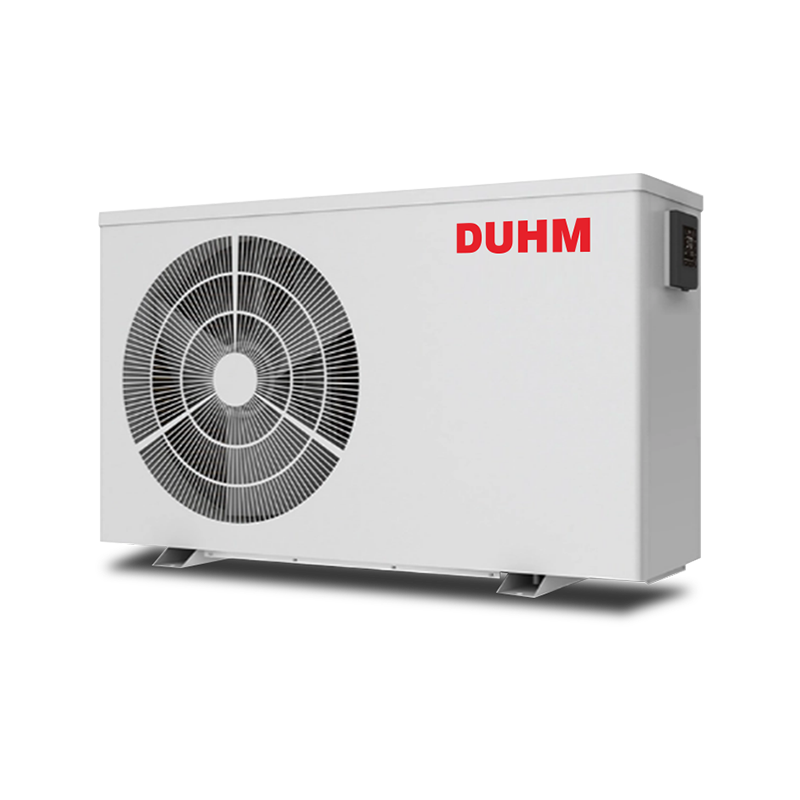

R32 Swimming Pool Heat Pump

Model  No

SPBM-08SIA

SPBM-10SIA

SPBM-12SIA

SPBM-14SIA

SPBM-17SIA

SPBM-23SIA

SPBM-21TIA

SPBM-26TIA

SPBM-35TIA

Heating Performance Condition (DB/WB): Air 27/22°C, Water Temp. (In/Out):  27/29℃

Heating Capacity Range         kW

4.09~8.02

3.98~10.0

7.35~11.98

7.38~14.30

9.97~16.71

13.30~23.48

12.11~20.51

13.58~26.55

13.49~34.33

Heating Power Input Range   kW

0.47~1.21

0.69~1.66

1.03～2.29

0.84~2.28

1.35~2.96

1.53~3.90

1.36~2.94

1.62~4.55

1.52~5.53

COP                                        W/W

6.59~8.62

5.80~6.02

5.23～7.12

6.26~8.74

5.64~7.38

6.02~8.71

6.97~8.92

5.84~8.37

6.21~8.85

Heating Performance Condition (DB/WB): Air 15/11℃, Water Temp. (In/Out): 26/  28℃

Heating Capacity Range         kW

3.03~5.95

3.98~7.48

5.54~9.15

5.36~10.57

7.75~12.43

9.36~17.13

8.81~16.07

10.53~20.54

10.30~26.32

Heating Power Input Range   kW

0.50~1.26

0.69~1.66

1.08~2.19

0.92~2.24

1.45~2.84

1.75~3.90

1.54~3.00

1.78~4.42

1.64~5.27

COP                                        W/W

4.68~5.95

4.50~5.80

4.18~5.14

4.73~5.85

4.38~5.36

4.39~5.33

4.63~5.73

4.65~5.90

5.00~6.27

Cooling Performance Condition (DB/WB): 35℃/24℃, Water Temp. (In/Out):  29/27℃

Cooling Capacity                   kW

1.50~6.01

1.64~6.54

1.86~7.47

2.50~10.02

3.06~12.25

4.27~17.10

3.67~14.69

4.19~16.79

4.96~19.86

Cooling Power Input            kW

0.27~1.61

0.30~1.95

0.35~2.31

0.47~2.70

0.58~3.35

0.79~4.79

0.69~4.28

0.79~5.19

0.91~6.27

EER                                       W/W

3.73~5.40

3.34~5.36

3.22～5.21

3.71~5,30

3.65~5.22

3.57~5.34

3.44~5.25

3.23~5.26

3.17~5.41

Advised pool volume            m³

20

25

30

35

40

55

50

65

85

Operating air temperature     ℃

-15~43

Sound Pressure 1m                dB(A)

40~51

41-51

41~52

43~53

44~54

45~56

45-56

46~57

  47-58

Electrical Data

Power supply

220-240V~/50HZ

380V-415V/3N~/50HZ

Rated Input Power                    KW

1.21

1.66

2.29

2.28

2.96

3.90

2.94

4.55

5.53

Max Current                                A

8.40

11.23

15.27

15.60

20.17

26.73

7.71

11.31

13.47

Water Data

Pipework Size                           inch

1-1/2

1-1/2

1-1/2

1-1/2

1-1/2

1-1/2

1-1/2

1-1/2

1-1/2

Water Flow Volume                m³/h

3.4

4.1

5.4

7.3

7.3

9.0

9.0

10.0

15.0

Water Pressure Drop (max.)             kPa

10

12

12

18

18

20

20

18

22

Key Components

Refrigerant R32 (kg)/CO2 Equivalent (Ton)

0.65/0.438

0.75/0.506

0.75/0.506

0.90/0.607

0.90/0.607

1.30/0.877

1.30/0.877

1.30/0.877

2.40/1.62

Automatic defrosting

By 4 way valve

Compressor

Rotary Compressor

Heat Exchanger

 Screwed Titanium  Heat Exchanger

Casing Material

Anti-UV Plastic ABS

Net Dimensions  (L*W*H)  (mm)

970*360*585

1045*370*625

1045*370*625

1110*416*711

1110*416*711

1110*446*958

1110*446*958

1110*446*958

1110*446*1260

Shipping Dimensions(L*W*H) (mm)

1060*380*600

1130*390*635

1130*390*635

1150*450*730

1150*450*730

1150*475*985

1150*475*985

1150*475*985

1150*475'1375

Net Weight(kg)/Gross Weight

43kg/50kg

50kg/56kg

50kxg/56kg

63kg/76kg

63kg/76kg

89kg/103kg

89kg/103kg

91kg/104kg

111kg/127kg
